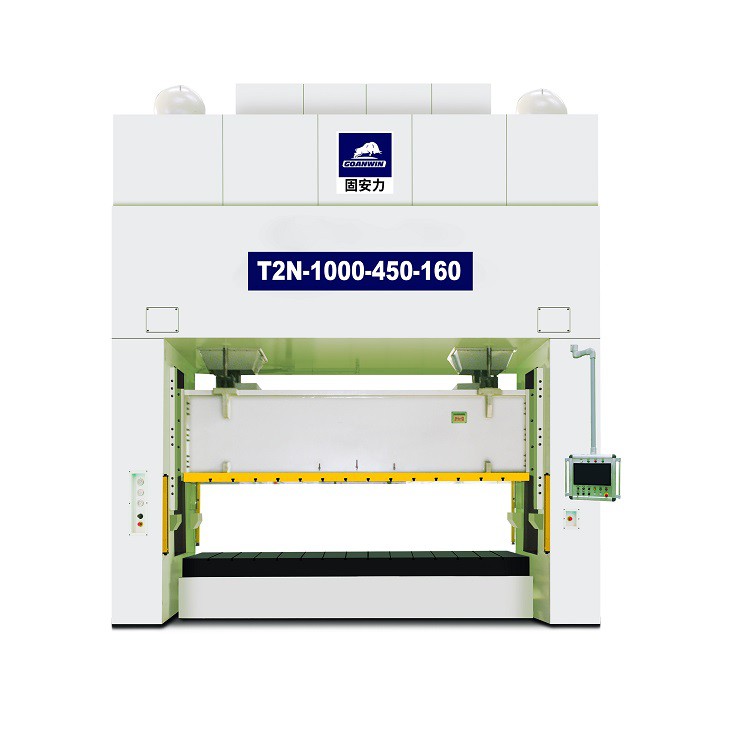

This H frame two-point stamping press is designed to run large dimension dies, both from left to right and front to back. This press can also run progressive or transfer dies, as well as large, odd-shaped or deep-formed parts that require a transfer system to move the part through the die. Compare to other normal presses, T2N can make larger table sizes according to customers' requirements.
Features
High rigidity welded body with less deflection.
High precision eight-side long guide rail to ensure best precision.
Editable speed of the slider during operation, high product qualification rate, and production efficiency;
Can be disassembled to 3 parts which is more convenient for delivery.
Energy-saving and environmentally friendly, ultra-low power consumption.
High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
Forced Lubrication system with default monitor ensures the operation reliability.
User-friendly design and electric control system providing high automation compatibility.
Fast response hydraulic overload protection system relieves the pressure of the tonnage overload , stopping the press immediately and protecting the press and dies from damage.
Shock-absorbing pad.
Review the specifications of our T2N Series gap frame mechanical press below, and then contact us for assistance in identifying the right mechanical press for your application.
Goanwin presses can be customized to meet a wider range of SPM, stroke, rating point (BDC), bed and other specifications and dimensions.
Technical Datas
| Model | T2N-400 | T2N-500 | T2N-630 | T2N-800 | T2N-1000 | T2N-1200 | |||||||
| Capacity | Ton | 400 | 500 | 630 | 800 | 1000 | 1200 | ||||||
| Rated Tonnage Point | mm | 7 | 9 | 8 | 12 | 8 | 12 | 8 | 12 | 12 | 13 | 12 | 13 |
| Stroke Length | mm | 300 | 400 | 300 | 400 | 300 | 400 | 300 | 400 | 400 | 450 | 400 | 450 |
| Stroke Per Minute | SPM | 20-40 | 20-30 | 15-35 | 15-25 | 20-35 | 15-25 | 15-30 | 15-25 | 15-30 | 15-25 | 15-30 | 15-25 |
| Die Height | mm | 600 | 700 | 600 | 800 | 700 | 900 | 800 | 1000 | 900 | 1100 | 1000 | 1200 |
| Max.Upper Die Weight | kg | 3200 | 4000 | 3500 | 4800 | 4000 | 5500 | 6000 | 8000 | 8000 | 1000 | 9000 | 12000 |
| Slide Adjustment | 150 | 200 | 250 | 250 | 300 | 300 | |||||||
| Slide Area | mm | 2700x1300 | 3400x1400 | 3000x1300 | 3600x1400 | 3600x1400 | 4000x1500 | 4000x1500 | 4500x1600 | 4500x1600 | 5000x1800 | 4500x1600 | 5000x1800 |
| Bolster Area | mm | 2700x1300 | 3400x1400 | 3000x1300 | 3600x1400 | 3600x1400 | 4000x1500 | 4000x1500 | 4500x1600 | 4500x1600 | 5000x1800 | 4500x1600 | 5000x1800 |
| Bolster Thickness | mm | 200 | 220 | 250 | 250 | 300 | 300 | ||||||
| Side Opening | mm | 1000x600 | 1100x700 | 1000x600 | 1100x700 | 1100x700 | 1200x800 | 1200x900 | 1200x1100 | 1200x1100 | 1400x1200 | 1200x1100 | 1400x1200 |
| Working Height | mm | 750 | 750 | 800 | 800 | 800 | 800 | ||||||
| Main Motor | kw.p | 45x4 | 55x4 | 75x4 | 90x4 | 110x4 | 132x4 | ||||||
| Slide Adjust Motor | kw.p | 3.7x4 | 5.5x4 | 7.5x4 | 7.5x4 | 11x4 | 11x4 | ||||||
| Frame Structure | Three Divisions / Integrated | Three Divisions | Three Divisions | Three Divisions | Three Divisions | Three Divisions | |||||||
