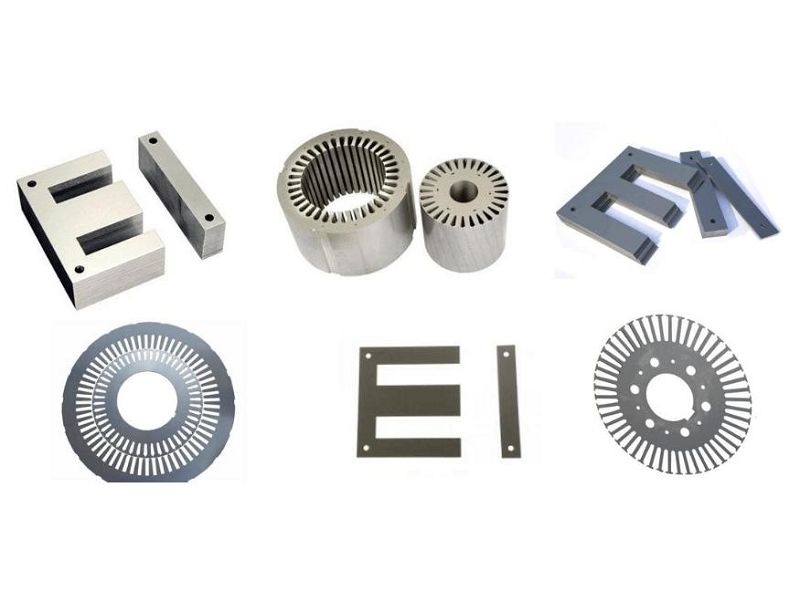

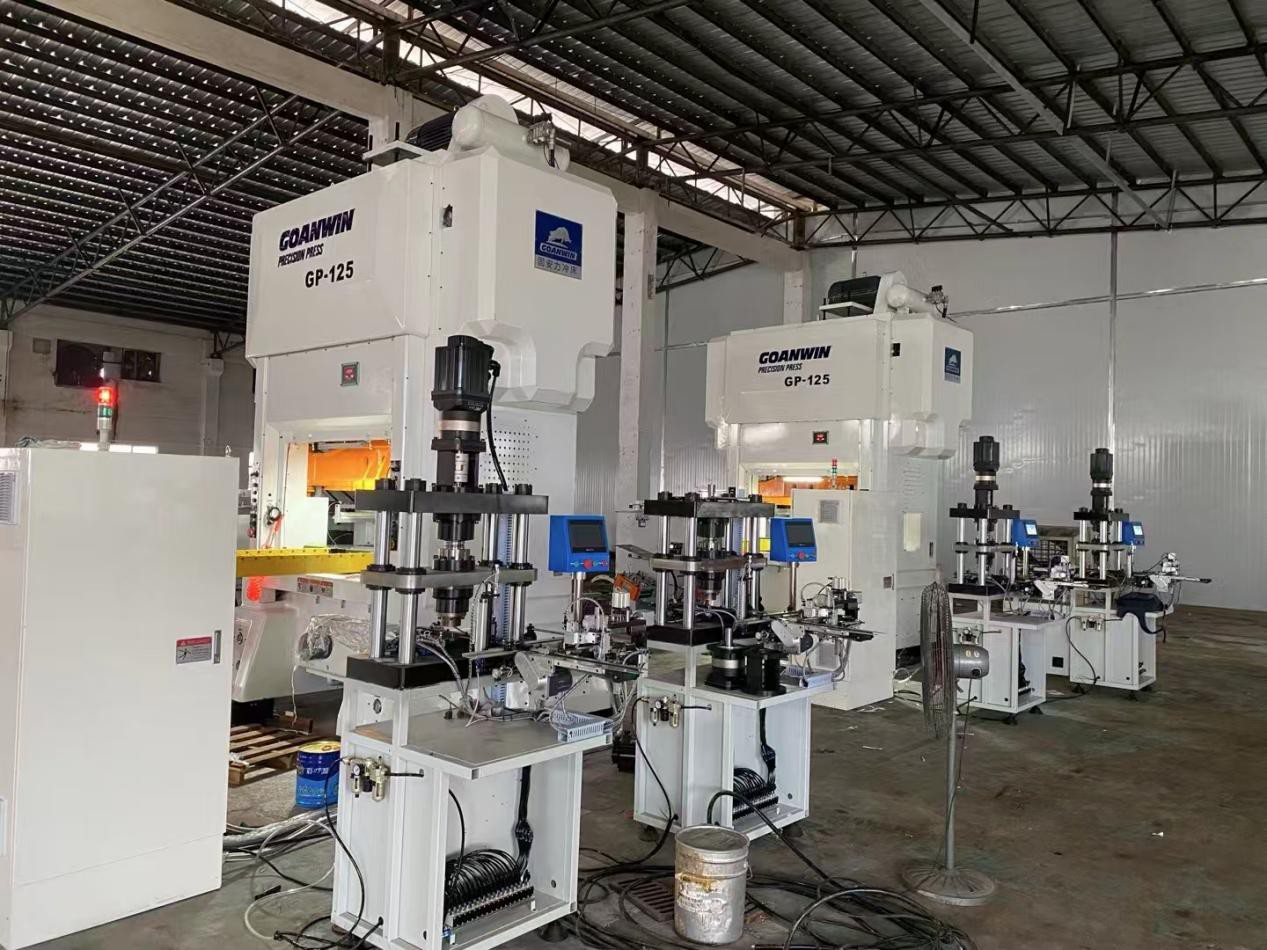

This H frame high speed press is mostly used for stamping motor lamination, the stacked rotors and stators.
Features
The frame is made of high strength cast iron, it eliminates the internal stress of the work piece through natural long time after precise temperature control and tempering, so that the performance of the work piece of the frame reaches the best state.
The double-column structure of the H-frame press provides excellent stability and precision during operation, ensuring that parts are produced with high accuracy and consistency.
Excellent dynamic balance design, which minimizes the vibration and noise, and ensure the life of both press and stamping die.
The press is specifically designed for high-speed operation, allowing for fast and efficient manufacturing of stamped metal parts.
Review the specifications of our GP Series H frame highs speed press below, and then contact us for assistance in identifying the right mechanical press for your application.
Technical Datas
| Model | GP-85T | GP-125T | GP-160T | GP-220T | GP-300T | GP-350T | GP-400T | GP-450T | GP-550T | |
| Nominal Press Capacity | tons | 85 | 125 | 160 | 220 | 300 | 350 | 400(Three Points) | 450(Three Points) | 550(Three Points) |
| Capacity Occur Point | mm | 2.0 | 3.2 | 3.2 | 3.2 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Stroke Length | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Strokes Per Minute | S.P.M | 200-500 | 150-500 | 150-500 | 150-450 | 100-350 | 100-300 | 100-300 | 100-300 | 60-260 |
| Die Height | mm | 330-380 | 360-410 | 360-410 | 370-420 | 400-450 | 400-450 | 450-500 | 450-500 | 480-530 |
| Slide Adjustment | mm | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Bolster Plate | mm | 1100x750 | 1400x850 | 1600x900 | 1900x1000 | 2300x1000 | 2500x1000 | 2800x1200 | 3000x1200 | 3300x1200 |
| Slide Plate | mm | 1100x500 | 1400x600 | 1600x600 | 1900x700 | 2300x900 | 2500x900 | 2800x1000 | 3000x1000 | 3300x1100 |
| Bolster Hole | mm | 800x150 | 1000x200 | 1100x200 | 1300x250 | 1800x300 | 2000x300 | 2500x450 | 2700x450 | 3000x450 |
| Linear Height | mm | 175±15 | 195±15 | 200±30 | 200±30 | 210±30 | 220±30 | 230±30 | 270±30 | 270±30 |
| Main Motor | kw | 22 | 37 | 37 | 45 | 55 | 55 | 75 | 75 | 90 |
| Outline Dimension | mm | 2530x1680x3935 | 3020x1800x4136 | 3300x1900x4250 | 3590x2100x4410 | 4060x2300x5105 | 4260x2300x5105 | 4640x2600x5405 | 4840x2600x5550 | 5300x2800x5650 |
